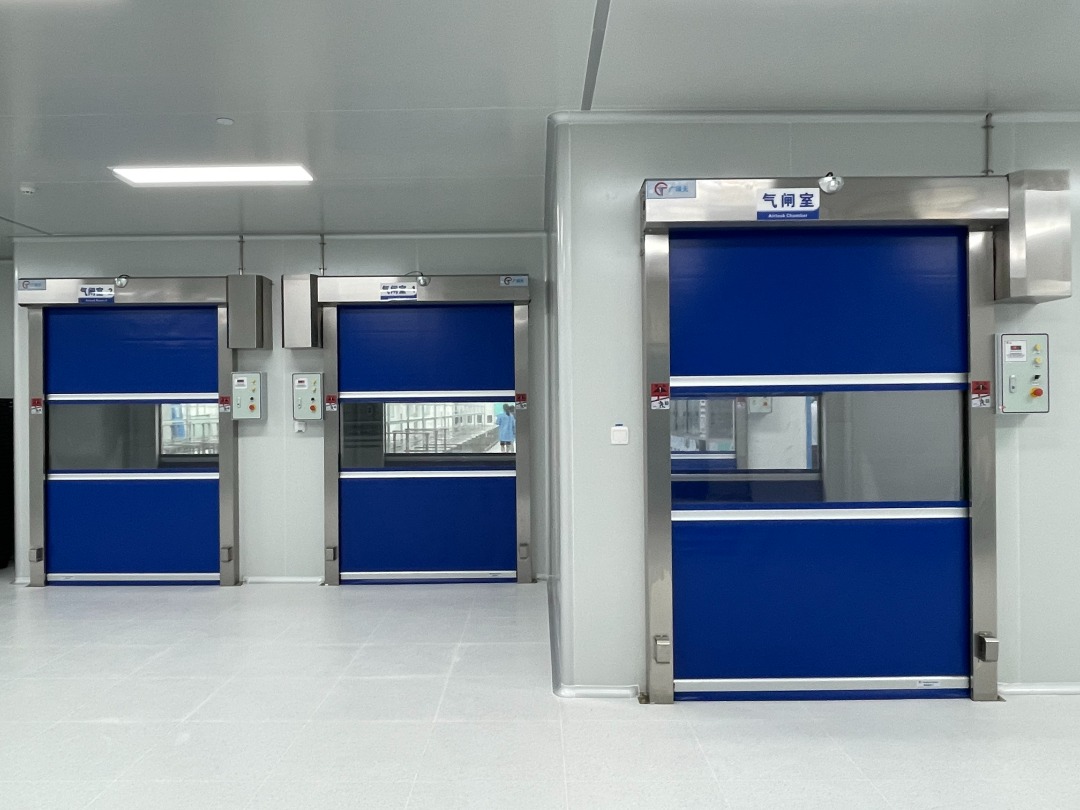

PVC Roll Up Speed door, Supplier High Speed door China

sHigh Speed Door

These High Speed Doors are suitable for applications where high speed opening and closing is required in either a fully automatic, semi-automatic or manual control mode. This type of Rapid Roll door is suited to both small and medium size openings and designed for use where heavy traffic is present.

Rapid Roller Door is a type of automatic roll up door that is designed to open and close very quickly, widely used in modern factories and warehouses. It can run in high speed and frequency, very fit for areas with heavy traffic. It improves efficiency of material handling. On the other hand, air flow and heat conduction through the door is reduced obviously, to keep clean, hygiene and temperature inside room. Automatic running is realized with programmed control system and sensor

This type of High Speed door can be used in a range of applications including stand-alone or combination use and is ideally suited for internal applications where partitions are required between temperature controlled, dusty, noisy or similar areas such as, Industrial warehouses, Supermarkets, Loading bays, Logistics buildings, Clean rooms and Cold storage.

These doors create more comfortable working conditions and significantly reduce energy costs with reduced mass air movement between different areas. Reducing operating times will improve drastically the efficiency of your business.

They are available with a variety of bespoke options and can be manufactured to include a crash-proof system, this system ensures that in the event of any impact by a vehicle, the door can easily be reset in very quickly without any special tools or skills.

CV Fastindo Sukses Bersama adalah distributor dan Instalator resmi prodak SPF Auto Door, Kenvo High Speed Door, Shoutian Rapid Door, Smoother Shutter Door, Monban Happy gate, Rollway Door, untuk kebutuhan Pintu pintu Otomatis silahkan hubungi 0817.7984.4597 atau 0812.1280.1672

High speed Door running

The opening speed can reaches up to 2.0m/s. And the closing speed can reaches  up to 1.0m/s. This means that the door can finish a cycle of opening and closing within in several seconds. It bring several major benefits:

  • Improve work efficiency:  Workers or forklifts will no need wait in front of the door and can directly go across it. The     material handling speed is higher by at least 5 times than tradional roll up doors;

  • Keep clean and hygiene:The fast running reduces the open time to only seconds in a cycle of passing the door. Thus much less outside air and dust will enter the room;

  • Keep temperature:Heat loss is reduced by large by reducing open time

High frequency working

The motor is frequency motor, and control panel is frequency inverter system. It can change work power output gently. So the door can start and stop in a soft process. Its running speed will accelerate or decelerate gradually. This can avoid overriding and over-heating caused by constant up and down. So the door can keep running and no need worry its motor burnt or structure damaged.

Our door can run up to 2000 times per day. This is why it is a best choice for busy area with heavy traffic like forklifts or passing workers. Our door can run up to 2000 times per day.

This is why it is a best choice for busy area with heavy traffic like forklifts or passing workers

Longer work life with lower maintenance

Advanced Italy servo technology drive motor and control system. Compared with traditional door system in the market, it has several advantages:

• Double encoders:

They calibrate with each other, to make running limit more accurate than tradtional limit sensors. This completely avoid running limits error and reduce maintenance. And even if     one encoder is damaged, you can switch to another encoder and the door will continue to work well, no need repair;

• Absolute encoder:

It will always keep the set limits even during power failure. So you no need bother to do the frequent job of re-seting the limits;

• Flexile Torque Control System:

The output torque of motor keeps changing according to running speed and load automaticlaly. This avoid over-heating and over-load after long time use, and make sure the door work longer life

User freindly Human-machine interface syste

There is a LED display on the controller, showing all parameters and setting steps in English language. You can set or change any parameters like using a mobile phone. So you will feel very easy and comfortable to use the doors even you do not have any experience.

And it is inbuilt with Fault-shooting program. The display will show the error information

when there is some problem. There are addtional input and output signals in the controller. You can activate it by the screeen and the door will work together with your production line, robots, conveyor, or other machines

Various Colors

We supply six different colors for your choice. You can make a free selection among them. Our doors can integrate into your whole building design and make the building harmony and beautiful.

Blue, Yellow, Orange, Grey, White, Full clear

A transparent window can be made at human by height. This makes it easy to see what is happening at another side of the door. It will be more safe for a busy area with moving workers and forklifts or other vehicles

Multiple safety protection

Considering the high speed running of the door, safety protection become very important to avoid possible accidents.  This can not be neglected when using such high performance doors.

There are three safety protection devices:

Safety photo sensor:

The sensor can send a infrared light beam from one side to another. When it is blocked by passing human or vehicles, the door will immediately stop or get up. Thus it aims to avoid accident;

Safety airbag sensor: It is a soft rubber airbag at the bottom. If something touches the bottom, the door will stopor get up. So it aims to stop accident once it happens;

Alarm lamp:

It gives out light flash signal or sound signal when the door running. Passing workers or vehicles can easily get aware that the door is working and take special care to avoid accidents

Interlocking Function

In some industries like food, pharmaceutical or electronics, it is a very important issue to keep hygiene and clean inside the room.  This is critical to keep final quality level of the finished products, no matter it is food, medicine or electronic applicances.  How to prevent outside air and dust is a major difficulty. A interlocking passage system can solve this problem perfect.

There are two door in one rooms. When door A opens, door B will never open. Only after Door A closed, Door B can open.Thus, at any time, there is at     least one door keep closed. So the outside air and dust will never be able to enter the room.

Other Trigger for open and close the High speed door

Every door will have wall mounted control buttons at both interior and exterior. Make sure the door can be operated by workers at any time when they need.

To improve your work efficiency, we also offer various addtional choices of operation devices.

• Remote control:

Each door can have two or more remote control units. People can open or close the door from as far as 100m distance;

• Radar sensor:

It can detect human or vehicles moving towards the door, and the door will open automatically. After passing through, the door will close automatically within several seconds which can set;

• Vechicle loop detector:

Detecting wire loop will be embedded into ground floor near the door. can detect all the big metal objects passing on its loop like forklifts.  It does not detect humans.

• Pull-cord switch:

This is very save & convinient for forklift drivers, and also can avoid unnecessary opening of the doors compared with other sensors.

Technical Data:

Applicable location:indoor or outdoor
Max dimension:5000mm wide*6000mm high
Max opening Speed:2.0m/s
Max closing speed:1.0m/s
Wind resistance:Beaufort scale 10 (25m/s)
Power supply:1-phase 220±10%V,50/60HZ, or  1-phase 380±10%V,50/60HZ
Protection level of electric:IP55
Available colors of fabric:Yellow, Blue, Red, Grey, White, Clear
Fabric curtain:PVC(Polyvinyl chloride), 1.0mm thick, optional for 1.2mm or 1.5mm thick
Frame material:Powder coated galvanized steel, optional for 304 stainless steel
Wind bar:Aluminum alloy, surface is powder coating spray
