Zipper door Fastindo

High Speed door Zipper

It is quite fit for high standard food and drug factory, clean room, laboratory and dust-free workshop, where there is extreme high demand of  hygienic and clean indoor environment. And also it can minimize long-term maintenance and repair cost for areas with heavy forklift traffic

Zipper High Speed doorZipper door Fastindo

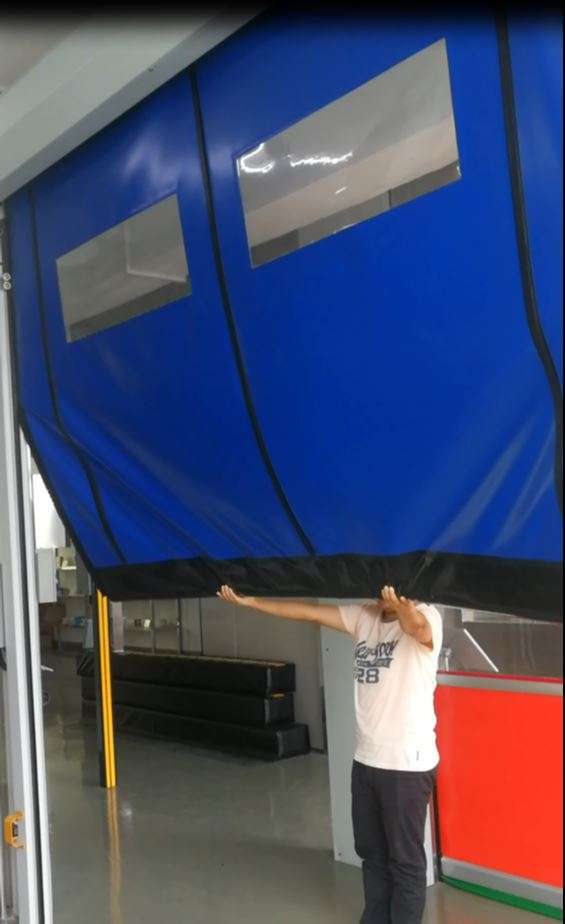

Self-repairing after collision accidents

Bottom beam of the door curtain is flexible soft design, quite different from hard metal beam of regular rapid doors. When there is a collision accident by forklift or other vehicles, it will get out from side frame and not be damaged. Then the curtain will automatically enter the side rail through a pull-back device at the top of the rail.And it can recover automatically.

This design effectively reduces the cost and energy of maintenance and repair work caused by collisions.

High air-tightness

Special zipper design structure at two sides of door curtain, connecting the fabric and side guide rails as a whole body, eliminating gap between them. It obviously improves overall seal performance and air tightness.

Thus, such doors are quite for high-clean areas, like clean room, food or pharmaceutical workshop, or laboratory. It will help prevent outside air and dust entering the room. Benefiting from its zipper airlock structure, it can keep the air pressure difference inside air controlled clean rooms, air shower or laboratory.

Longer work life with lower maintenance

Advanced Italy servo technology drive motor and control system. Compared with traditional door system in the market, it has several advantages:

Double encoders:  They calibrate with each other, to make running limit more accurate than tradtional limit sensors. This completely avoid running limits error and reduce maintenance. And even if one encoder is damaged, you can switch to another encoder and the door will continue to work well, no need repair;

Absolute encoder: outside encoder is advanced absolute encoder. It will always keep the set limits even during power failure. So you no need bother to do the frequent job of re-seting the limits;

Flexile Torque Control System:  The output torque of motor keeps changing  according to running speed and load automaticlaly. This avoid over-heating and over-load after long time use, and make sure the door work longer life.

User freindly Human-machine interface system

There is a LED display on the controller, showing all parameters and setting steps in English language. You can set or change any parameters like using a mobile phone. So you will feel very easy and comfortable to use the doors even you do not have any experience.

And it is inbuilt with Fault-shooting program. The display will show the error information when there is some problem.

There are addtional input and output signals in the controller. You can activate it by the screen and the door will work together with your production line, robots, conveyor, or other machines

CV Fastindo Sukses Bersama adalah distributor dan Instalator resmi prodak SPF Auto Door, Kenvo High Speed Door, Shoutian Rapid Door, Smoother Shutter Door, Monban Happy gate, Rollway Door, untuk kebutuhan Pintu pintu Otomatis silahkan hubungi 0817.7984.4597 atau 0812.1280.1672

Various Colors Of  Zipper High Speed door

We supply six different colors for your choice. You can make a free selection among them. Our doors can integrate into your whole building design and make the building harmony and beautiful.

Blue, Yellow, Orange, Grey, White, Full clear

A transparent window can be made at human eye height. This makes it easy to see what is happening at another side of the door. It will be more safe for a busy area with moving workers and forklifts or other vehicles.

Multiple safety protection Zipper rapid door

Considering the high speed running of the door, safety protection become very important to avoid possible accidents.  This can not be neglected when using such high performance doors.

There are three safety protection devices:

Safety photo sensor:  The sensor can send a infrared light beam from one side to another. When it is blocked by passing human or vehicles, the door will immediately stop or get up. Thus it aims to avoid

Safety airbag sensor: It is a soft rubber airbag at the bottom. If something touches the bottom, the door will stop or get up. So it aims to stop accident once it happens;

Alarm lamp: It gives out light flash signal or sound signal when the door running. Passing workers or vehicles can easily get aware that the door is working and take special care to avoid accidents.

Interlocking Function Zipper High Speed door

In some industries like food, pharmaceutical or electronics, it is a very important issue to keep hygiene and clean inside the room.  This is critical to keep final quality level of the finished products, no matter it is food, medicine or electronic applicances.  How to prevent outside air and dust is a major difficulty. An interlocking passage system can solve this problem perfect.

Door A and Door B are installed at two ends of the passage. When door A  opens, Door B will never open. Only after Door A closed, Door B can open.Thus, at any time, there is at least one door keep closed. So the outside air and dust will never be able to enter the room.

We have input the interlocking function in every door.  When necessary, any two doors can be interlocked.

Every door will have wall mounted control buttons at both interior and exterior. This can make sure the door can be operated by workers at any time when they need.

Various Operation Methods

To improve your work efficiency, we also offer various addtional choices of operation devices.

Remote control:  Each door can have two or more remote control units. People can open or close the door from as far as 100m distance;

Radar sensor: It can detect human or vehicles moving towards the door, and the door will open automatically. After passing through, the door will close automatically within several seconds which can set;

Vechicle loop detector: It detecting wire loop will be embedded into ground floor near the door. It can detect all the big metal objects passing on its loop like forklifts.  It does not detect humans. Thus such sensor is quite fit for doors which only allow forklifts passing automatically.

Pull-cord switch:  This is very convinient for forklift drivers, and also can avoid unnecessary opening of the doors compared with radar sensors or vehicle detector;

Technical Data:

Applicable location:both interior and exterior
Max dimension:5000mm wide*6000mm high
Max opening Speed:2.0m/s
Max closing speed:1.0m/s
Wind resistance:Beaufort scale 10 (25m/s)
Power supply:1-phase 220±10%V,50/60HZ, or  1-phase 380±10%V,50/60HZ
Protection level of electric:IP55
Available colors of fabric:Yellow, Blue, Red, Grey, White, Clear
Fabric curtain:PVC(Polyvinyl chloride), 1.0mm thick, optional for 1.2mm or 1.5mm thick
Frame material:Powder coated galvanized steel, optional for 304 stainless steel
Wind bar:Aluminum alloy material, surface is powder coated
